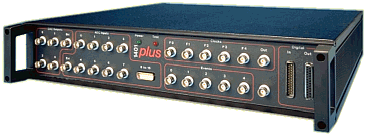

1401plus picture 1401plus

The 1401plus is a highly respected computer interface used in laboratories worldwide for capturing and analysing experiment data with a PC or Macintosh host computer.

The 1401plus records waveform data, digital (event) data and marker information, and can generate waveform and digital outputs simultaneously for real time, multi-tasking experiment control. The 1401plus features a 32-bit internal microprocessor and on-board memory to facilitate high speed data capture and complex on-line analysis, freeing valuable time for the host computer to perform other tasks, such as updating the display and writing the data to hard disk.

The modular design of the 1401plus enables users to upgrade their systems to benefit from new technology and to add additional modules for specialist signal processing. Optional modules include:

CED software packages customise the system for use in a wide range of science applications, including:

1401plus technical data

Analogue I/O 16 analogue input channels, ±5V or ±10V, front panel connectors
Up to 32 analogue inputs via internal expansion unit
12-bit 333 kHz ADC with data silo (16-bit 100 kHz and 400 kHz options)
4 analogue output channels, 12-bit (16-bit option), ±5V or ±10V
Digital I/O 8 digital inputs with change-of-state detection to micro-second accuracy
8 digital outputs
8 digital input/outputs
Handshake lines for byte input and output
Clocks and Events 5 programmable clocks
Front-panel BNC socket for clock inputs and event (clock start) connections
Front-panel BNC brightness pulse output
Processor and Memory 32GX32 32-bit processor
1 MByte of read-write memory
Optional 4 or 16 MByte expansion memory
Host interface Interface adapters available for PC (ISA or PCI bus) and Macintosh (Nubus or PCI bus)
Case and power supply Internal 110/240V AC power supply, 50 - 60 Hz
DC option available 12 - 15V
Power consumption: 45 watts
Size: 43mm wide x 86 mm high x 432 mm deep
Optional rack mounts for standard laboratory racks
Compatibility Software compatible with CED 1401 and micro1401 at application level
Drivers for Macintosh, DOS and Windows (3.11, '95 and NT)
Runs SIGAVG, Signal, Spike2, CHART, PATCH and many other specialist application packages
